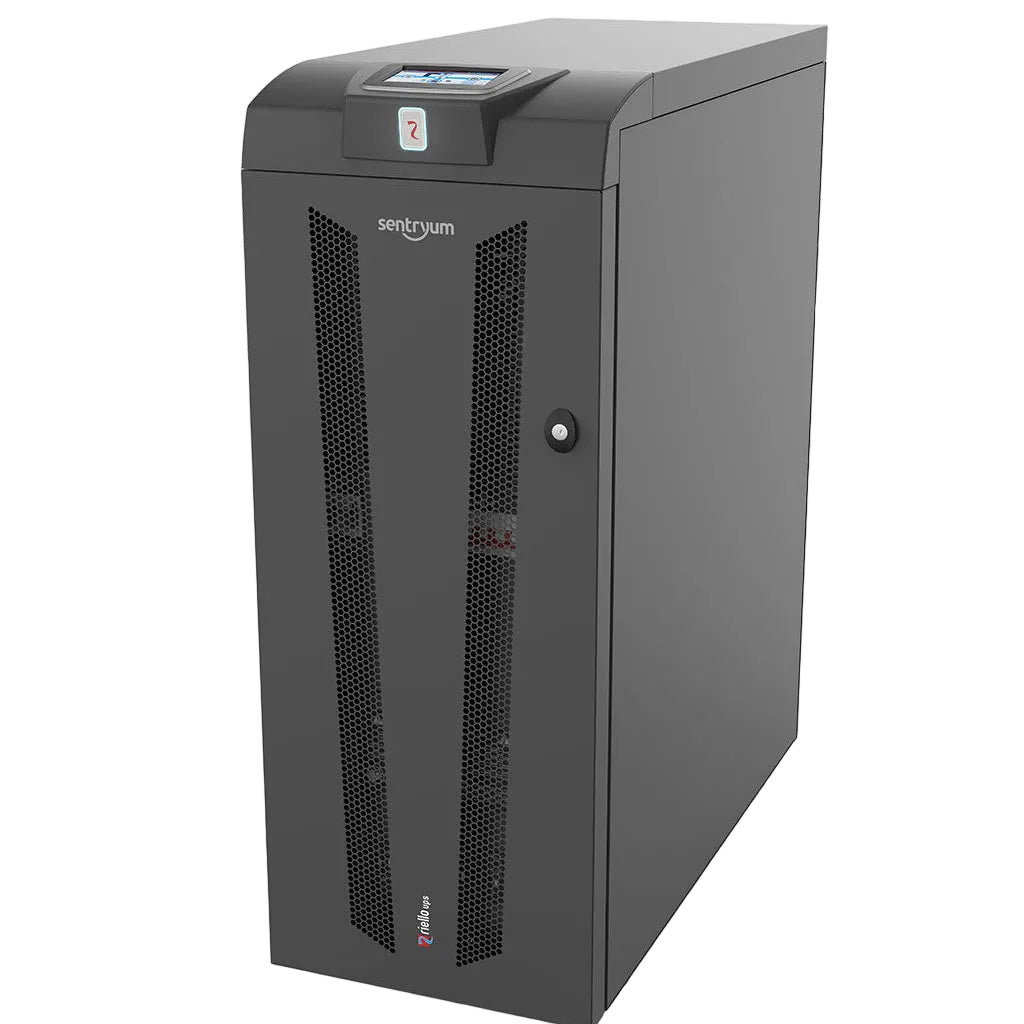

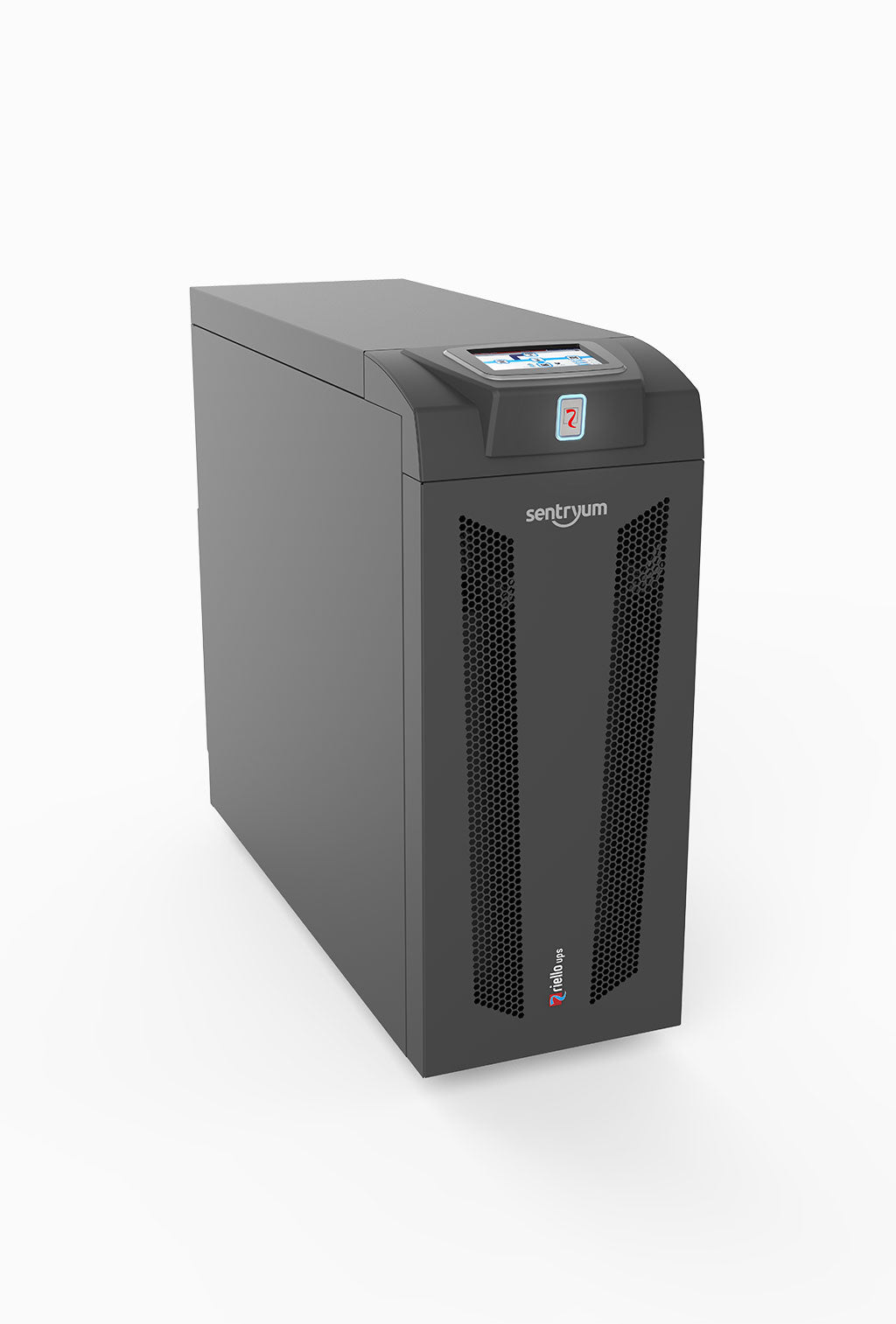

Riello Online UPS S3T 40KVA Uninterruptible power supply 40KVA 40KW Italian Brand

Riello UPS S3T 40KVA delivers reliable uninterruptible power supply with 40KVA/40KW capacity. This Italian-engineered system ensures continuous power protection for critical applications, preventing data loss and equipment damage during outages. Features advanced battery management, compact design, and automatic voltage regulation. Ideal for data centers, servers, and industrial facilities requiring dependable backup power. Built with proven Riello quality and efficiency.

يوفر نظام Riello UPS S3T (بقدرة 40 كيلوفولت أمبير / 40 كيلوواط) حماية موثوقة ومستمرة للطاقة؛ إذ يضمن هذا النظام -المصمم بتقنية إيطالية- استمرارية الحماية الكهربائية للتطبيقات الحساسة، مما يمنع فقدان البيانات وتلف المعدات أثناء انقطاع التيار. يتميز النظام بتقنيات متطورة لإدارة البطاريات، وتصميم مدمج، وخاصية التنظيم التلقائي للجهد، مما يجعله الخيار الأمثل لمراكز البيانات والخوادم والمنشآت الصناعية التي تتطلب مصادر طاقة احتياطية يمكن الاعتماد عليها، فضلاً عن تميزه بمعايير الجودة والكفاءة المعهودة لشركة Riello.

• Italian Manufacture
• Warranty 2 Years

  Models	S3T 40 XTD
  INPUT
  Rated power	40000 VA
  Voltage	380 / 400 / 415 V three-phase + N
  Voltage tolerance	400 ±20% @ full load (for wider tolerance conditions apply)
  Frequency tolerance	40 - 72 Hz
  Power factor	0.99
  BY PASS
  Rated voltage	380 / 400 / 415 V three-phase + N
  Voltage tolerance	From 180 V (adjustable 180-200) to 264 V (adjustable 250-264) referring to neutral (Ph-N)
  Rated frequency	50 or 60 Hz (selectable)
  Frequency tolerance	±5% (selectable)
  Number phases	3 + N
  OUTPUT and INVERTER OUTPUT
  Rated power	40000 VA
  Active power	40000 W
  Output current	64 (bypass) A - 58 (inverter) A
  Number phases	3 + N
  Crest factor (Ipeak/Irms)	3 : 1
  Waveform	Sinusoidal
  Static stability	±0.5%
  Dynamic stability	EN 62040-3 class performance 1 non-linear load
  Frequency	50 or 60 Hz
  Voltage distortion with non-linear load	≤1.5%
  Voltage distortion with linear load	<1%
  BATTERIES
  Type	VRLA AGM/GEL/NiCd/Li-ion/Supercaps
  Type of charging	One level, Two level, Cyclic recharge (selectable)
  ENVIRONMENTAL
  Color	RAL 7016
  Communication	UPS status led bar - Graphic touch screen display - 2 slots for communications interface USB - RS232 - Contact interface with 5x opto insulated Input and 4x Output relays
  Protection rating	IP20
  Line-Interactive/Smart Active efficiency	Up to 99%
  Noise (at 1 m)	<40 [dBA ±2] (SMART ACTIVE)
  Remote signals	voltage free contacts
  Operating temperature	0 °C - +40 °C
  Relative humidity	5-95% non-condensing
  Standards	European directives: LV 2014/35/EU low voltage; EMC 2014/30/EU electromagnetic compatibility -- Directive and Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; RoHS compliant -- Classification in accordance with IEC EN 62040-3 VFI - SS - 111
  DATA
  Weight	116 kg
  Dimensions (h w d)	1320x440x840 mm
